Description

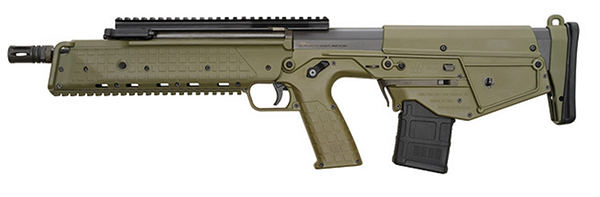

The RDB (Rifle Downward-eject Bullpup) features a rotary bolt with a spring loaded ejector and an extractor facing down. The spent case is pulled backwards along the top of the magazine and then ejected through a vertical chute. The hammer is U-shaped and runs outside the chute and above the magazine. Obviously, the bolt travel is longer than traditional designs but well within the ergonomic constraints of a rifle. Other advantages are gravity assisted ejection, higher bolt energy at feeding and a slower full auto rate (when applicable).
The RDB is built around a common steel skeleton formed by the receiver and barrel sub-assemblies. Bolt, bolt carrier, firing mechanism, ejector chute and bolt stop are identical for all variations. The short stroke gas operated piston is fully adjustable for different ammunitions and muzzle attachments.
More Information
BARREL LENGTH
17
CALIBER
5.56
CAPACITY
30
CONDITION
New in Box
FINISH PER COLOR
OD Green
MANUFACTURER PART NUMBER
RDBGRN
MODEL
RDB
TYPE
Modern Sporting Rifles
UPC
640832005950
