Description
DETAILS

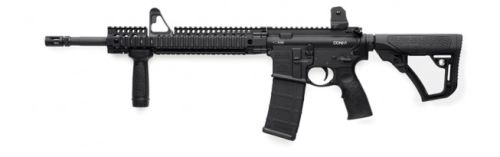

The DDM4V1, the original Daniel Defense Rifle, is built with a Cold Hammer Forged 16 M4 Profile barrel with a Carbine gas system. It comes installed with our proprietary front sight base which is precision CNC machined from a solid billet of 4140 steel. This FSB features a serrated curved design to minimize glare and is salt bath nitride treated minimizing corrosion and wear. The DDM4 Rail 12.0 FSP allows the operator to mount a weapon light or aiming device forward of the front sight for optimal ergonomics and a clear line of sight. Quick disconnect attachment points are integrated to the front and back on both sides of the rail for fully ambidextrous sling attachment. The new independently ambi GRIP-N-RIP Charging Handle accommodates left- and right-handed shooters and is engineered for suppressed fire, with anti-gas features that redirect gas flow upward and away from the face and operator. This rifle also comes with the newly designed, rugged and comfortable Daniel Defense Buttstock and Pistol Grip.
MATERIALS & CONSTRUCTION
LOWER RECEIVER: Mil-Spec with Enhanced Flared Magazine Well and Rear Receiver QD Swivel Attachment Point. CNC Machined from 7075-T6 Aluminum, Type III Hard Coat Anodized
UPPER RECEIVER: Mil-Spec with Indexing Marks and M4 Feed Ramps. CNC Machined of 7075-T6 Aluminum, Type III Hard Coat Anodized
BARREL: Chrome Moly Vanadium Steel, Cold Hammer Forged, 1:7 Twist, 16? M4 Profile, Chrome Lined, MP tested, Mil-Spec Heavy Phosphate Coated, and HP/MPI Tested
GAS SYSTEM: Front Sight Base CNC machined from 4140 steel and Salt Bath Nitride Finished, Carbine Length, Direct Impingement
MUZZLE DEVICE: Daniel Defense Flash Suppressor, 17-4 PH Stainless Steel, Salt Bath Nitride Finished
BOLT CARRIER GROUP: M16 Profile, Mil-Spec MP Tested, Chrome Lined, Properly Staked Gas Key
BUFFER: H Buffer
SIGHTS: Daniel Defense A1.5 Fixed Rear Sight: CNC Machined from 6061-T6 aluminum, Type III Hard Coat Anodized; Daniel Defense FSP: CNC Machined from 4140 steel, Salt Bath Nitride Finished
HANDGUARD: Daniel Defense DDM4 Rail 12.0 FSP, CNC Machined of 6061-T6 Aluminum, Type III Hard Coat Anodized
CHARGING HANDLE: GRIP-N-RIP Charging Handle, Body CNC Machined of 7075-T6 Aluminum, Handles & Latch CNC Machined of 6061-T6 Aluminum, Heavy Duty Stainless Steel Roll Pins, Type III Hard Coat Anodized
RECEIVER EXTENSION: 6 Position Mil-Spec 7075-T6 Aluminum
BUTTSTOCK: Daniel Defense Buttstock, Glass Filled Polymer with Soft Touch Overmolding
PISTOL GRIP: Daniel Defense Pistol Grip, Glass Filled Polymer with Soft Touch Overmolding
GRIP: Daniel Defense Vertical Grip, Glass Filled Polymer with Soft Touch Overmolding
RAIL PANELS: Daniel Defense Rail Panels made from Santoprene, heat resistant to 300° F.
Made in the USA!
SPECIFICATIONS
More Information
Mounting System
Picatinny
Caliber
5.56mm NATO
Muzzle Thread
1?2×28 TPI (Threads Per Inch)
Gas System
Carbine
Barrel Length
16″
Barrel Profile
M4
Product Weight
6.70 lbs
Length
32 ¼ 35 7/8
Magazine
DD Magazine
Case
Daniel Defense Full-Latch Impact Plastic Case
Manufacturer
Daniel Defense
